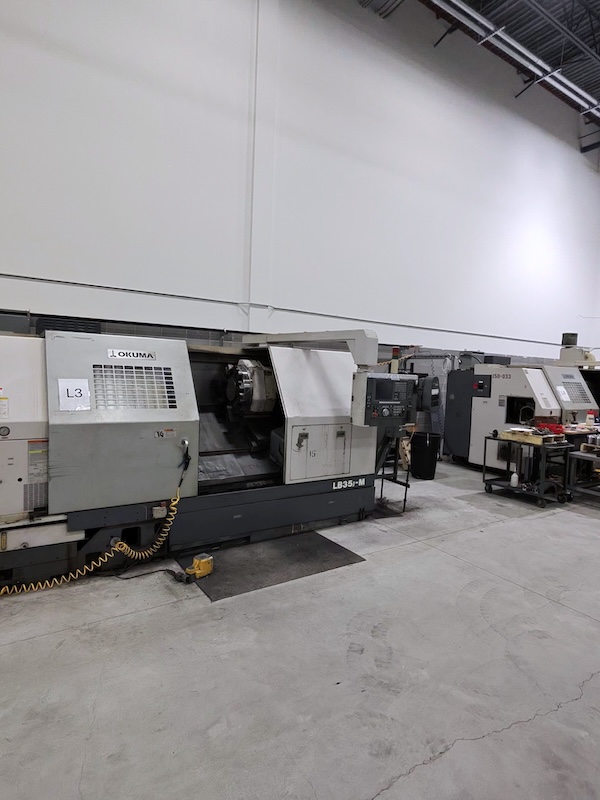

Okuma LB35II-M CNC Turning Center (2005)
The Okuma LB35II-M is a heavy-duty CNC turning center designed for high-torque metal removal, exceptional rigidity, and long-term thermal stability. Built on massive box ways, the machine delivers excellent vibration dampening and cutting stability compared with many modern linear-guide designs. This makes it particularly suitable for machining difficult materials, large workpieces, and interrupted cuts.
This 2005 Okuma LB35II-M (Serial No. 119276) is equipped with the reliable Okuma OSP-P100 control, a powerful spindle with a 12-inch hydraulic chuck, and a 12-station VDI50 turret with live tooling. The machine supports both heavy turning and secondary milling operations in a single setup.
The machine has been serviced and maintained by CNCmarket.ca during the last two years, ensuring stable operation and readiness for continued production.
Technical Specifications
Manufacturer: Okuma
Model: LB35II-M
Year: 2005

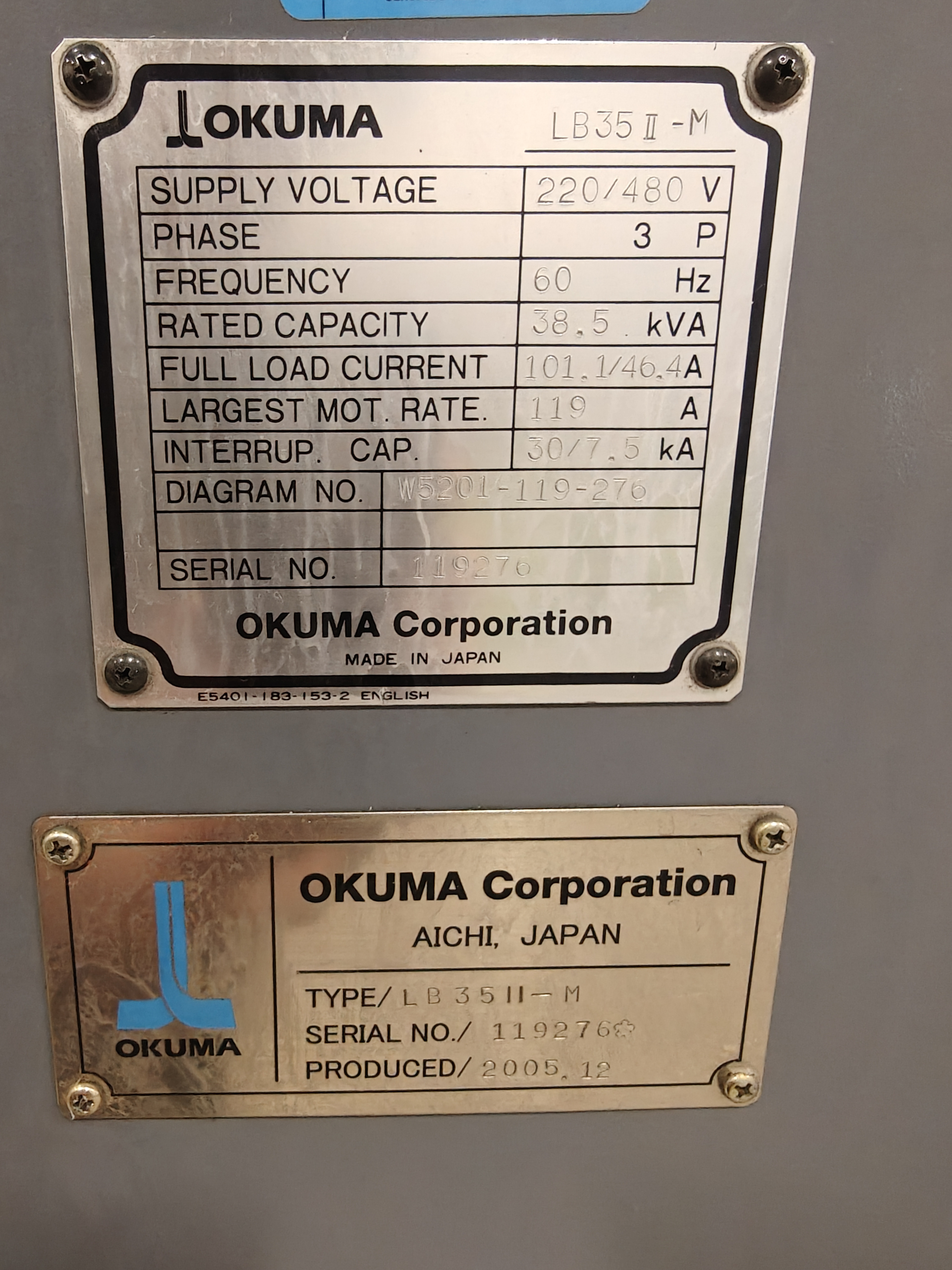

Serial Number: 119276

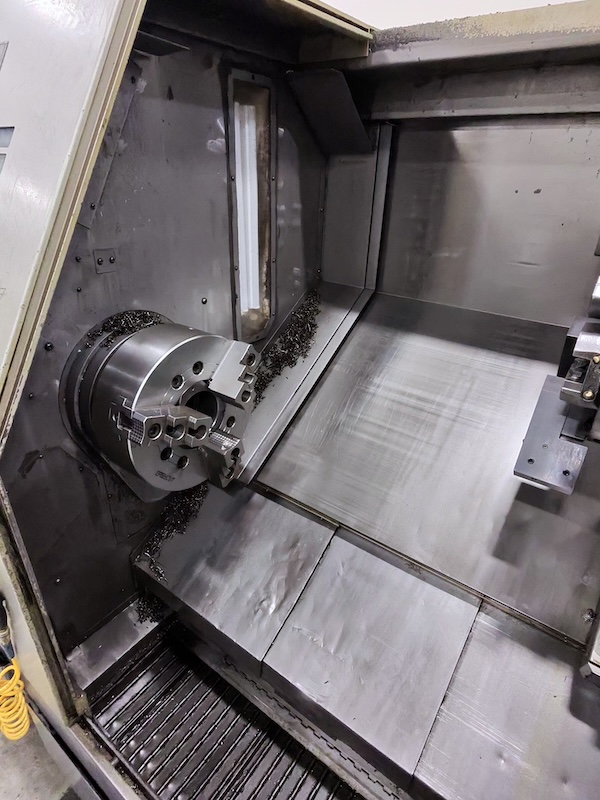

Chuck Size: 305 mm (12") Hydraulic Chuck
Max Turning Diameter: Ø 460 mm (18.11")
Max Turning Length: 850 mm

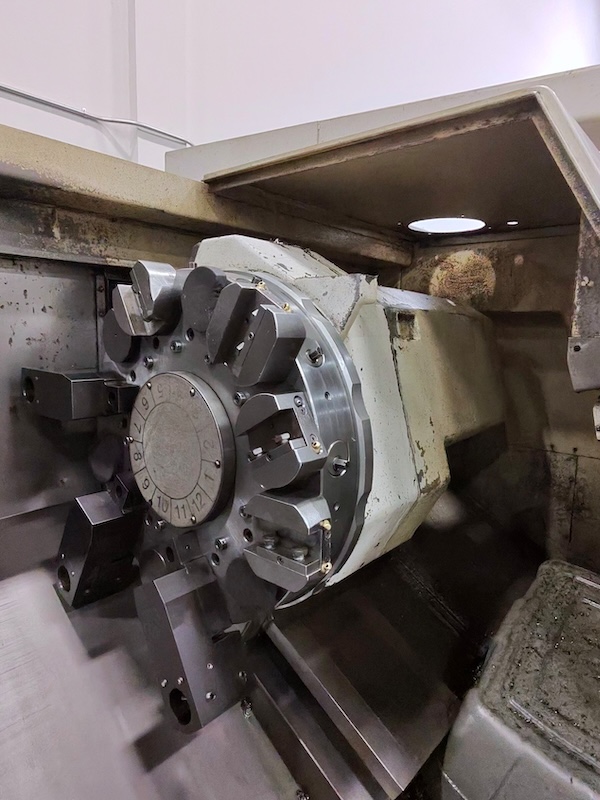

Turret: 12-Station VDI50 with Live Tooling
Spindle Speed: Up to 3,000 RPM
Main Motor Power: 30 / 37 kW (40 / 50 HP)
C-Axis: 0.001° indexing with full contouring

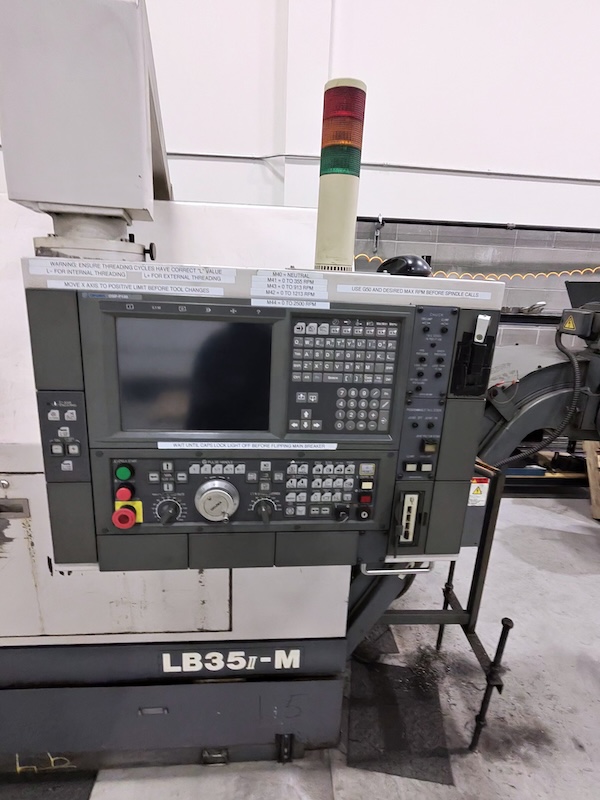

Control System: Okuma OSP-P100 (Windows Platform)
Guideway Type: Box Ways
Key Machine Advantages
- VDI50 Live Tooling enables off-center drilling, tapping, and milling operations directly on the lathe.
- Heavy-Duty Box-Way Construction provides superior rigidity and vibration damping for improved surface finish and tool life.
- OSP-P100 Control System offers reliable operation with advanced thermal compensation technology.
- Integrated C-Axis allows contour milling and multi-operation machining in one setup.
- High-Torque Spindle ideal for machining steel, stainless steel, and difficult materials.
Note: Specifications are based on typical Okuma LB35II-M configurations and publicly available data. Exact configuration should be verified during inspection.
